Description
Customisable RAKwireless 8dBi Antenna Bundle
This customisable product covers all the 8dBi Antenna Bundles from RAKwireless
Details for 858-878MHz
- Frequency: 858-878MHz
- Gain: 8.0 dBi (±1dBi)
- VSWR: ≤1.5
- Beamwidth: 360 degrees
- Impedance: 50 Ohms
- Polarization: Vertical
- Radome Body: Fiberglass
- Connector Type: N-Type Male
- Antenna Dimensions: 1300 ± 15mm
- Operation Temperatur:e -30°C~65°C
- Storage Temperatures: -30°C~75°C
Details for 900-930MHz
- Frequency: 900-930MHz
- Gain: 8.0 dBi
- VSWR: ≤1.5
- Beamwidth: 360 degrees
- Impedance: 50 Ohms
- Polarization: Vertical
- Radome Body: Fiberglass
- Connector Type: N-Type Male
- Antenna Dimensions: 900 ± 25mm
- Operation Temperature: -30°C~65°C
- Storage Temperatures: -30°C~75°C
Package Contents
Bundle 1
- 2pcs Antenna
- 2pcs Pigtail interface converter
- 4pcs Mounting Brackets
Bundle 2
- 1pc Antenna
- 1pc Antenna Magnetic Base
- 1pc Pigtail interface converter
- 2pc Mounting Brackets

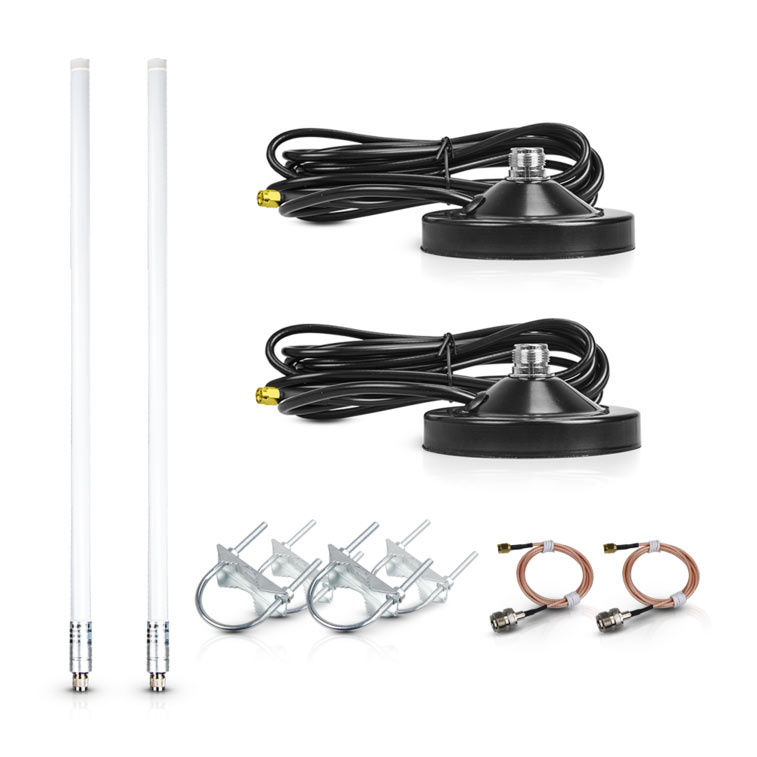

Bundle 3
- 2pcs Antenna
- 2pcs Antena Magnetic Base
- 2pcs Pigtail interface converter
- 4pcs Mounting Brackets
To choose the appropriate antenna with regards to the LoRa frequency of your region, please refer to the TTN’s guide, and/or the Regional Parameters Documentation provided by the LoRa Alliance.
Connector Options
IPEX: Small connector found on our concentrator cards like the RAK2287
RP-SMA: Connector found on our commercial and developer gateways, RAK Hotspot Miner and Helium™ Hotspot
Product Notice:
The antenna magnetic base is not suitable for mounting outside. This is due to the fact that it is not water-tight and high moisture levels would eventually damage it and result in an inoperable installation. RAKwireless recommends only use it in indoor conditions away from wet environments.
This antenna cannot be used for the EU433 and CN470 frequencies.
